Residential Low noise Automatic Floor Spring Door , Door leaf Max 1150mm

Door leaf Max 1150mm Low noise desigh (<40db) CE ISO9001-2000 SGS Automatic spring door

Installation Notice

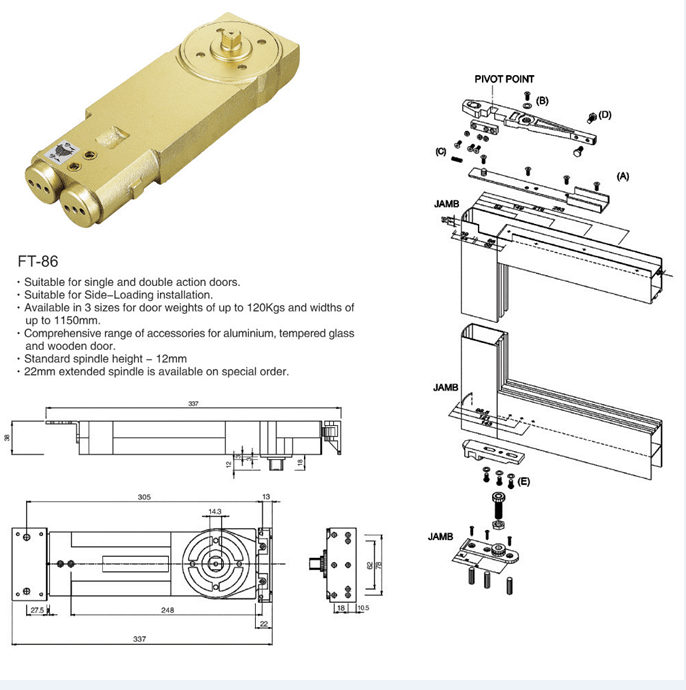

Door leaf max weight and width: Please refer to the max limit of the door application, overweight will affect the capacity of the operator. (See below diagram)

Installation measurement: The operator must be installed exactly as the measurements stipulated by the instruction manual, the improper installation will decrease the operation of the operator, even cause malfunction and damage. Make sure the the driving axis is in line of pivot.

Examine and repair exit:prepare the exit for examination and repair.

Glass door requirement: If you use the small door clip, the glass door width must be less than 900mm for safety, and the glass should be tempered.

Installation notice

1. 1. Pay attention to the position mark in the driving axis, the mark direction point to door leaf.
2. 2. Make sure the lintel size is enough.
3. 3. The driving axis should be in the vertical line of the bottom pivot otherwise the door can not be opened or closed properly.
4. 4. Tighten all screws of door clips fo 100% safety. If the door clip is loose, the operator can not identify the accurate door position and cause trembling.
